Application:

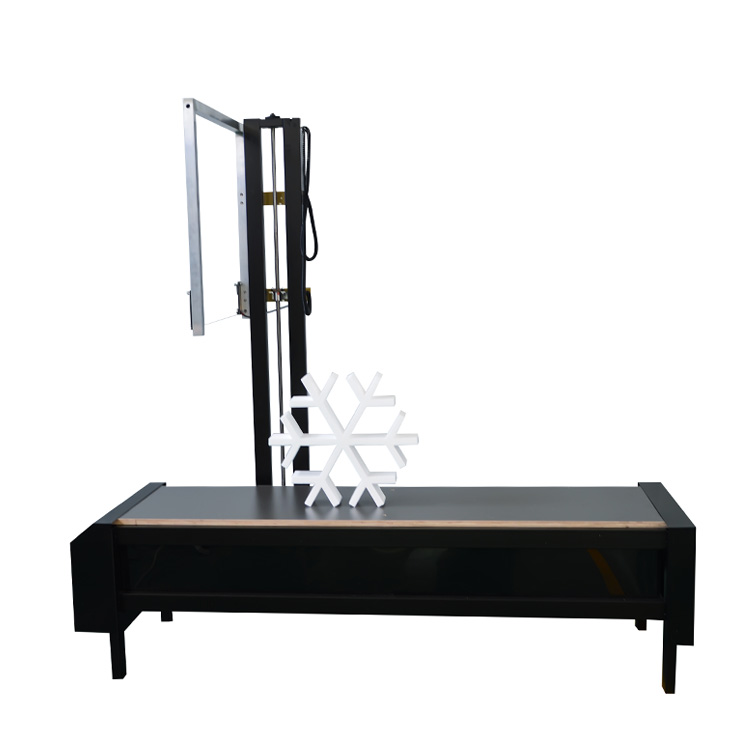

1. KD-E Series CNC Foam Cutting Machine is the perfect partner at trade fairs and exhibitions for advertising technicians, font designers, advertising professionals, logos, letterings and 2D panels.
2. Computer controlled (CNC) via Windows PC.
3. With its compact size，light weight and well priced.
4. Perfect for multiple applications in difffferent locations.
5. 0.3 mm strong cutting wire will provide the best results.
Technical Data
| Model No. | KD-E0615 | KD-E0622 | KD-E0630 |
| X-axis(1) | 1450 mm | 2150 mm | 3050 mm |
| Y-axis(2) | 600 mm | 600 mm | 600 mm |
| Wire Length（3） | 600 mm | 600 mm | 600 mm |
| Power Input | 1000 W | 1000 W | 1000 W |
| Working Speed | 1500 mm/ min | 1500 mm/ min | 1500 mm/ min |
| Weight | 200 kg | 250 kg | 320 kg |
| Dimensions (L*W*H ) | 1950*600*2000 mm | 2650*600*2000 mm | 3650*600*2000 mm |
| Supply Voltage | 230V/50Hz(110V/60Hz) | 230V/50Hz(110V/60Hz) | 230V/50Hz(110V/60Hz) |
| Number of Axes | 2 | 2 | 2 |
1) Track distance forward/backward
2) Track distance up/down
3) Maximum wire length
Basic Kit Include:
1 * KD-E Series CNC Machine
1 * Software(Free Updated),
1 * 1 Roll of Hot Wire 100 m
1 * Operating Instructions
Supported Software: Corel Draw®, AutoCAD, Adobe Illustrator
Supported Files: DXF, DWG or PLT
