Application:

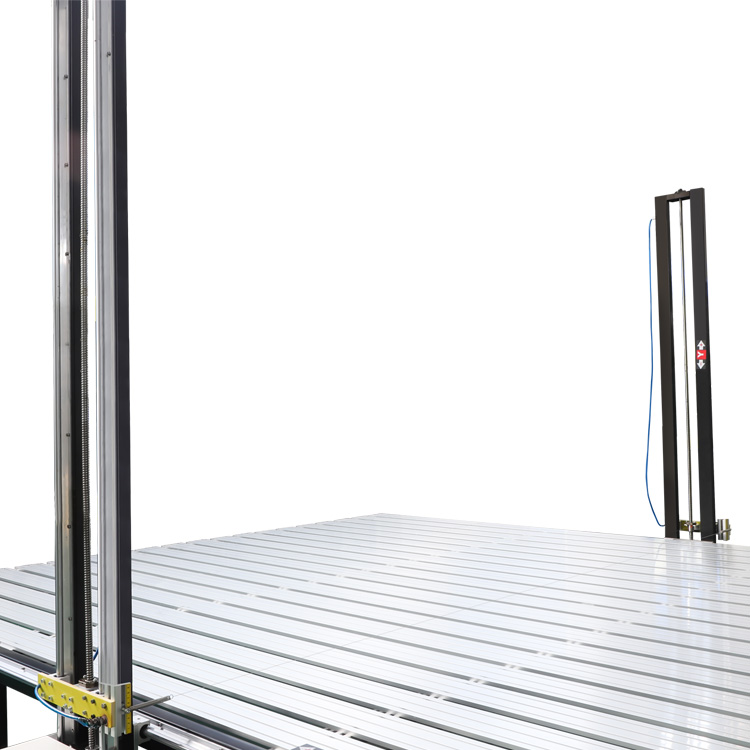

KD-NF Series CNC Foam Cutting Machine can cut EPS/XPS/EPP material.
It will work on any Windows PC with network connection.
Type of drive is spindle which is durable and accurate.
Four independent axes as standard, while turn tables extend the machine by a 5th axis.
High Performance, sturdy steel frame and aluminum table targets the commercial production.
Thanks to the wheels, the machine can be moved wherever you want.
Widely used in the following industry:
1) Sloped roofs and roof ridge turrets and formwork.
2) Stucco and crown molding, pillars and columns;
3) Letters, numbers, lettering and logos;
4) Backdrops for themes, movie or theater and many more
Technical Data
| Model No. | KD-NF3030 | KD-NF4040 | KD-NF5050 |
| X-Axis(1) | 3050 mm | 4050 mm | 5050 mm |
| Y-Axis(2) | 1550 mm | 1550 mm | 1550 mm |
| Wire Length(3) | 3100 mm | 4100 mm | 5100 mm |
| Power Input | 1200 W | 1300 W | 1500 W |
| Max. working size (L*W*H) | 3050*3000*1600 mm | 4050*4000*1600 mm | 5050*5000*1600 mm |
| N.W. | 510 Kgs | 580 Kgs | 760 Kgs |
(1) Track distance forward/backward
(2) Track distance up/down
(3) Maximum wire length
Basic Kit Include:
1 * CNC Foam Cutter KD-NF3030
1 * Software(Free Updated)
1 * 1 Roll of Hot Wire 100m
1 * Operating Instructions
Supported Software: Corel Draw® , AutoCAD, Adobe Illustrator,3D Max
Supported Files: DXF, DWG，PLT or STL
